PTO-T2

PTO-T2

PTO-T2

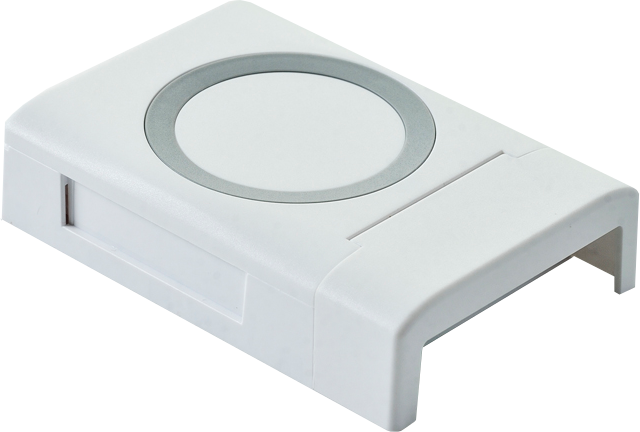

The PTO-T2 (Optical Termination Outlet) is designed for installation in residential premises.
This outlet is available in 1, 2 or 4 fibre versions. Installation is easy and can be done either by pigtail splicing, using a field mountable connector or by using a 900μm pre-terminated cable.

The PTO-T2 consists of:

  • 9 cable entries;
  • 1 bare or 900μm fibre coiling tray that can hold up to 4 fusion splice protection sleeves of 45mm length;
  • 1 protective cover;
  • 1 pivoting protection cover for connectors;
  • 1 identification label area with transparent protection.
  • Fast implementation
    Fast implementation
  • Independent Fiber Management
    Independent Fiber Management
  • Rail mounting DIN
    Rail mounting DIN
  • Secure Connection
    Secure Connection

Product benefits

  • Attractive product, fitting into any interior.
  • Can be mounted on a wall or on a plate.

Business sheet

You must be logged to download file.
Sign In or Create an account

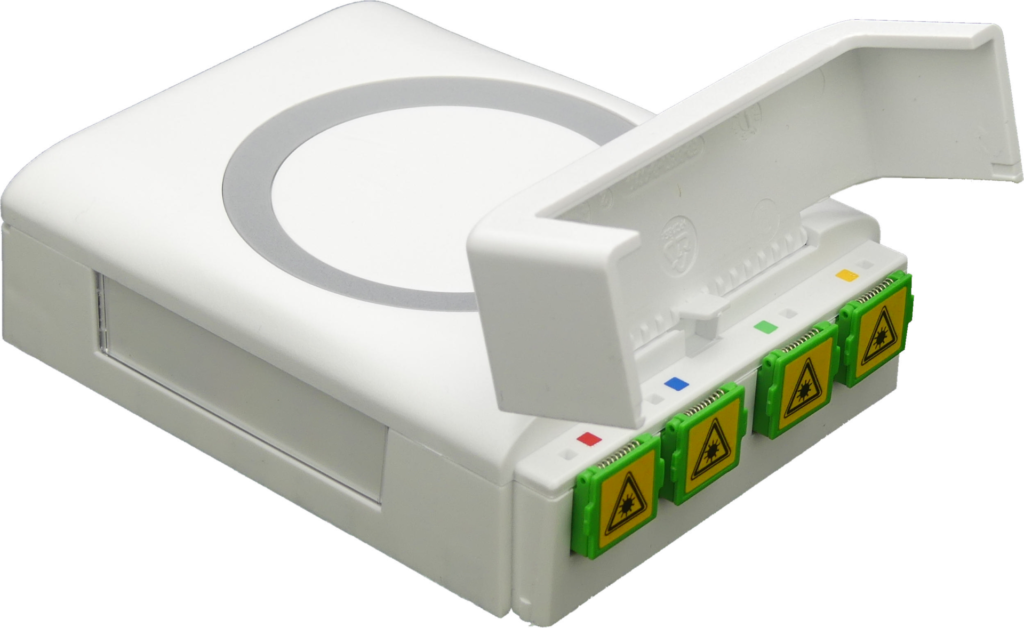

OTO-T2 with four SC/APC adapters with external valve

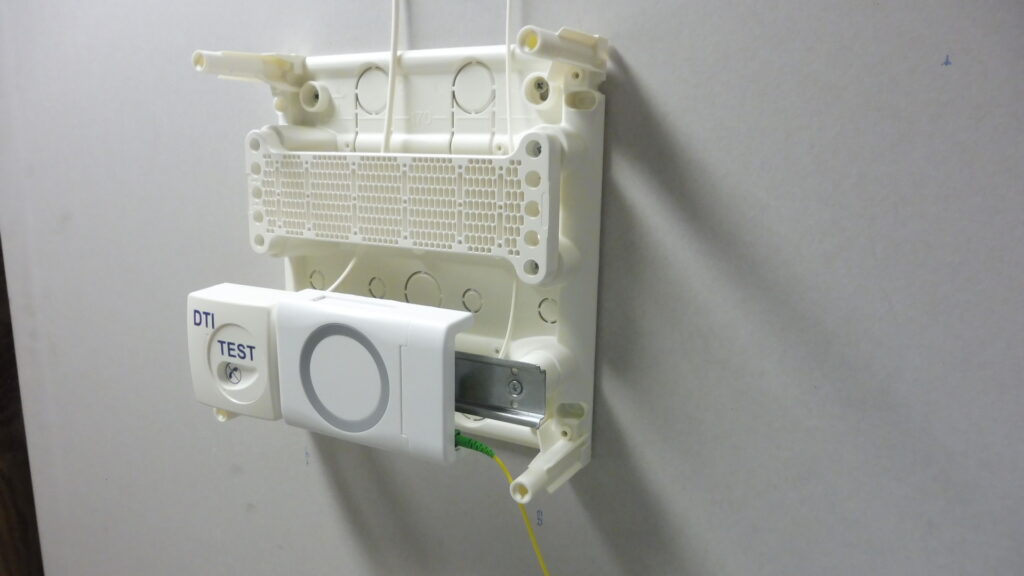

OTO-T2 mounted on DIN rail

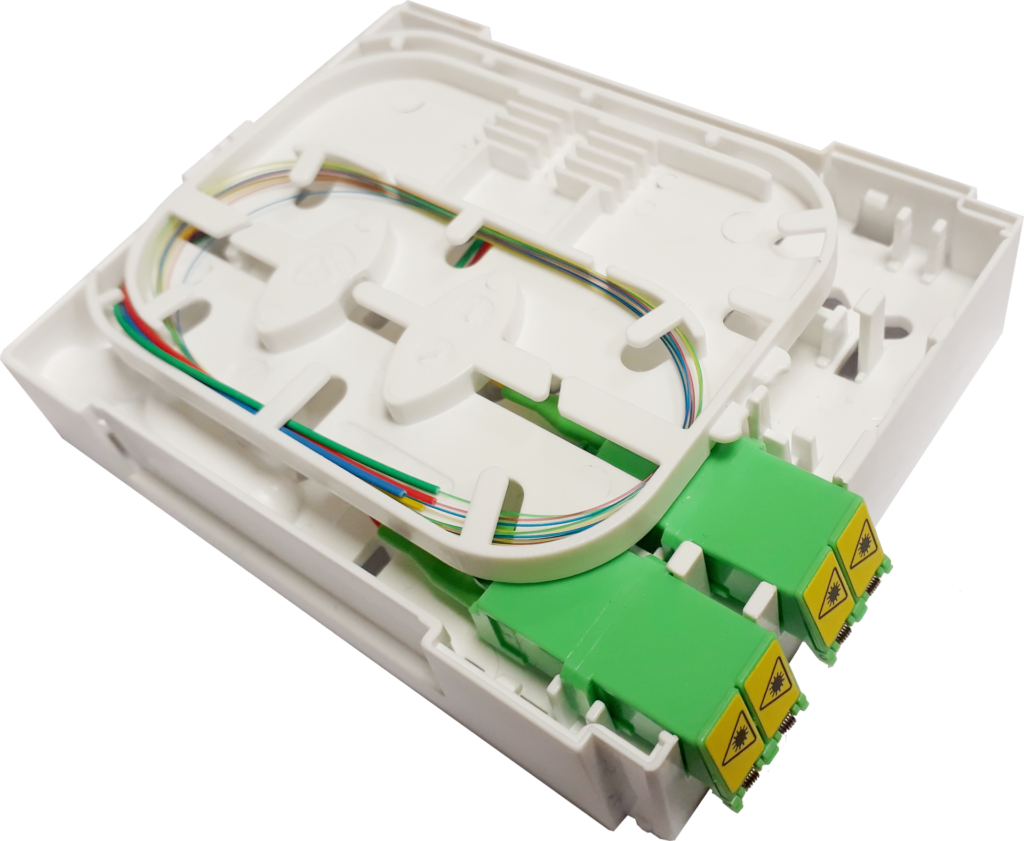

PTO-T2 4 pigtails raccords LC
