The BE-BOX-12/24 allows the splicing and connection of 12 or 24 fibres of the vertical distribution cable depending on the version. It is designed to connect to a maximum of 16 splice cables.

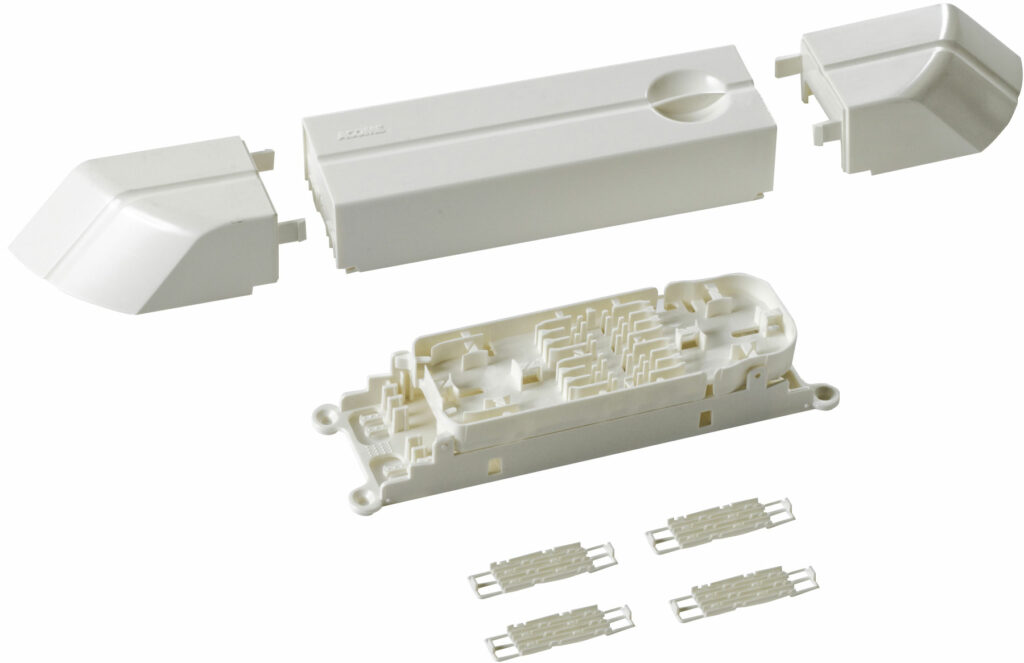

The BE-BOX-12/24 consists of:

  • a base for anchoring the vertical distribution cable and subscriber connections;
  • 1 splice tray of your choice: 12 OF (mechanical or fusion splices with adapters) or 24 OF (fusion splices only);
  • a wall mounting kit with the possibility of adding two end caps to cover the cables along a cable raceway.
  • Compact
  • Fast implementation
    Fast implementation
  • Top/Bottom cable entry
    Top/Bottom cable entry
  • Wall mounting
    Wall mounting

Product benefits

  • Distribution cable fan-out system for directing optical fibres to individual outlets.
  • Separation of spliced fibres and fibres pending in the protective tray.

Business sheet

You must be logged to download file.
Sign In or Create an account

BE-BOX avec cache le long d'une goulotte

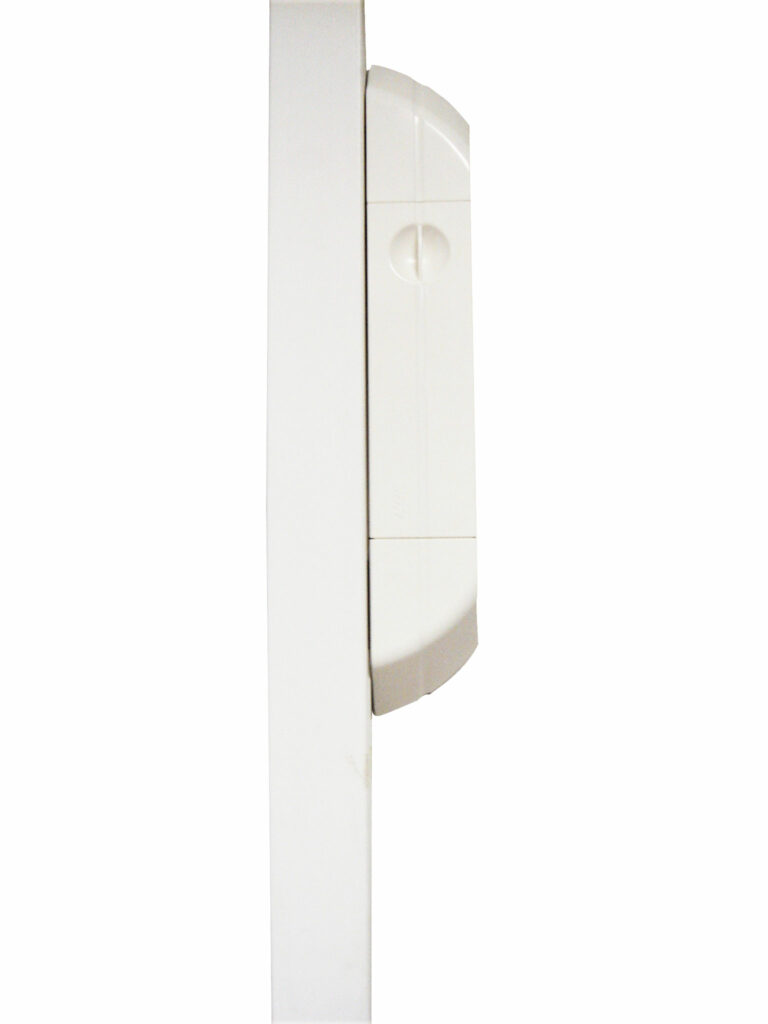

BE-BOX-12/24 with extension cover installed along a cable raceway
