1U MEDIACONVERTER SHELF

1U MEDIACONVERTER SHELF

1U MEDIACONVERTER SHELF

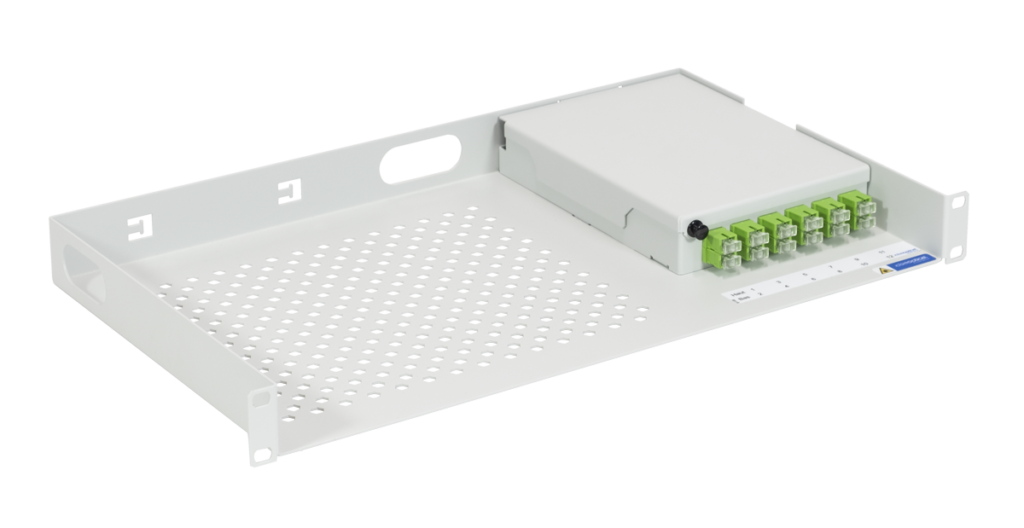

The 1U MEDIACONVERTER SHELF is a 19’’ metal shelf composed of two separate areas. The first device of its type, it is able to accommodate and support an electro-optical media converter (not included) as well as an optical section for storing and splicing a 12 OF cable.

THE 1U MEDIACONVERTER SHELF is composed of:

  • 1 fixed metal tray comprising two separate areas:
    • 1 electro-optical area able to accommodate and support a media converter (not included) of a maximum size of 40 × 250 × 300mm (HxDxW);
    • 1 “optical” area able to anchor a 12 OF optical cable and splice fibres on SC/APC connectors. It also includes a locking slot for 12 OF optical cables and a panel with 12 SC/APC adapters;
  • 2 openings dedicated to the passage of cables (optical, electrical).
  • Direct front access
    Direct front access
  • Fast implementation
    Fast implementation
  • Independent Fiber Management
    Independent Fiber Management
  • Secure Connection
    Secure Connection

Product benefits

  • The optical section is protected by a metal cover
  • Better heat dissipation in the electro-optical area thanks to honeycomb cut-outs

Business sheet

You must be logged to download file.
Sign In or Create an account

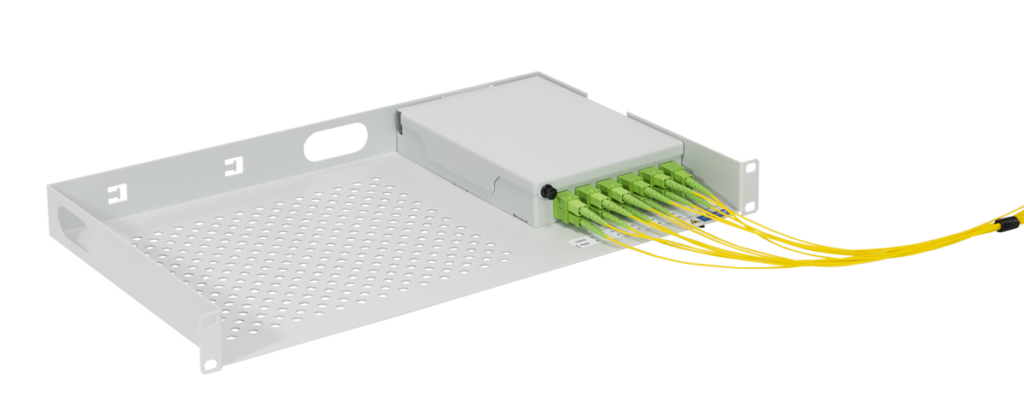

MEDIACONVERTER tray with 12 SC/APC patch cords
