iTOM-HD

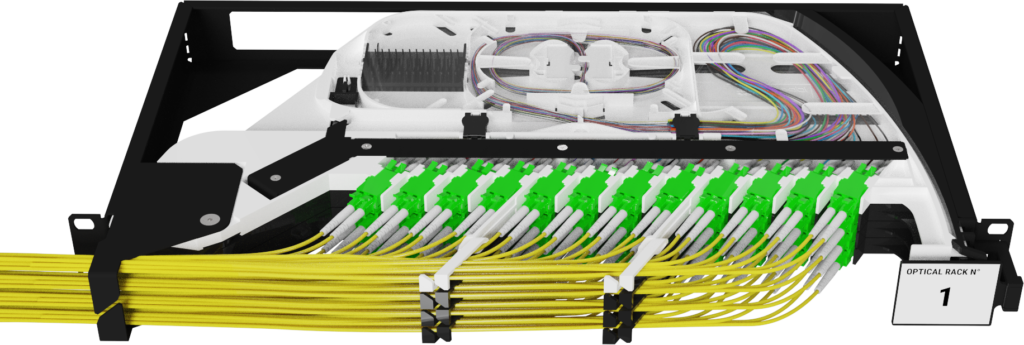

The iTOM-HD is a 19” format pivoting optical fibre rack designed to connect spliced optical fibre.

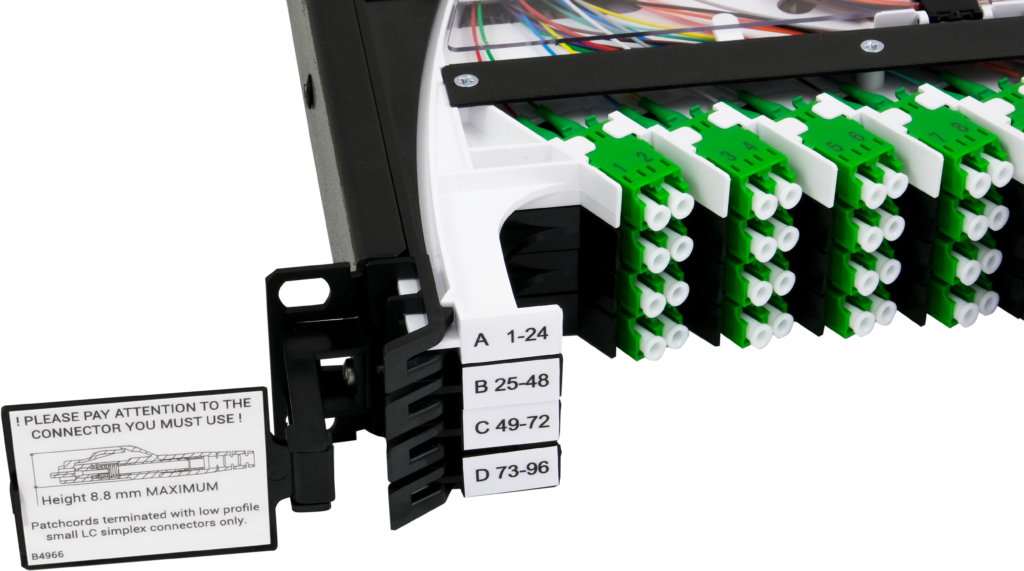

Highly compact, it has up to 288 LC type connection points, or 144 SC type connection points over a 3U height. The 30° connectors provide better cord guidance on exit from the module.
It is especially suitable for FttH subscriber services in shared indoor or outdoor points.
The iTOM-HD is composed of:
- 1 static part used for fixing cable anchors and guiding protection tubes to the splicing plates;
- 2 x 19″ depth-adjustable fixing brackets for both front and rear mounting;

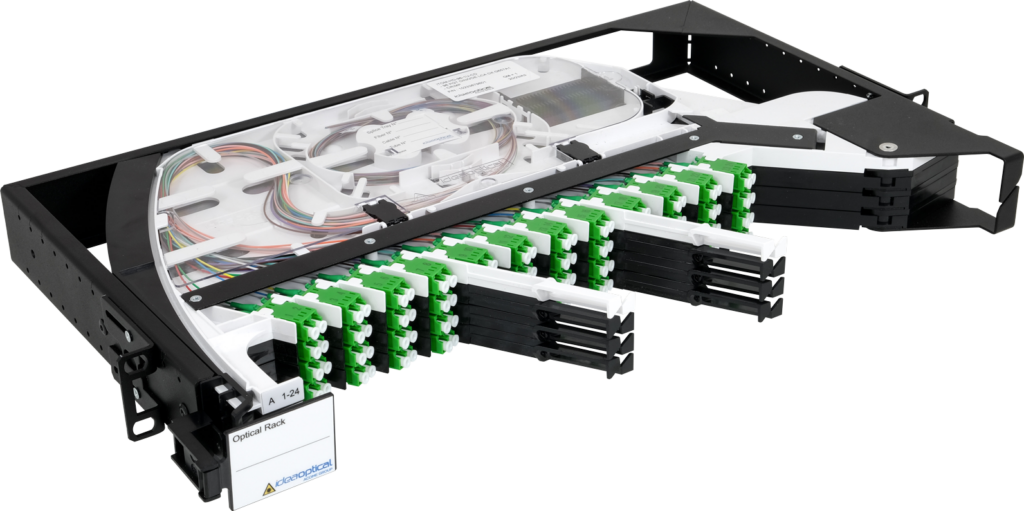

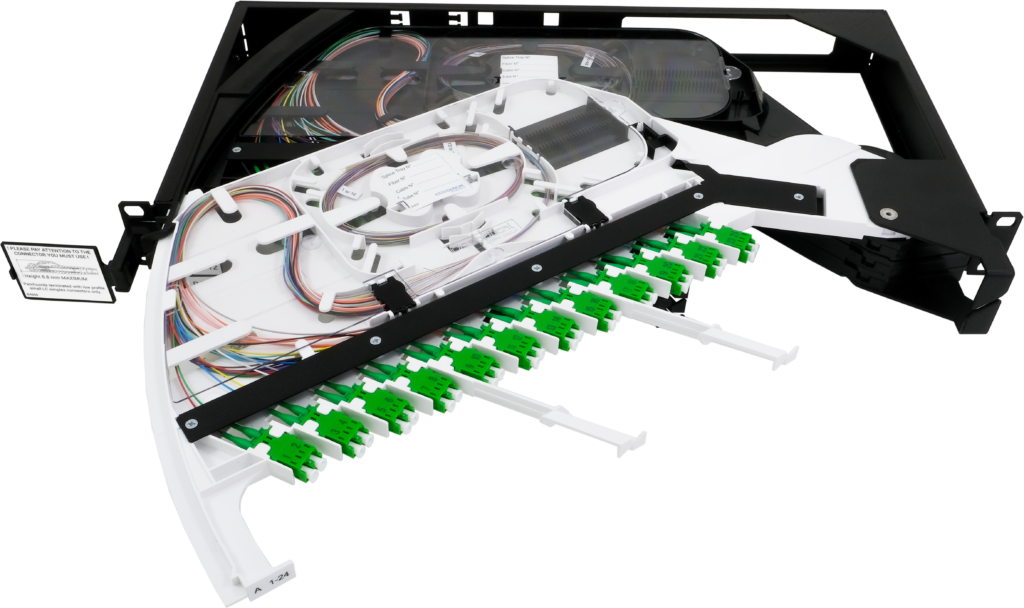

- up to 16 separate right or left pivoting plates with a 24 fibre capacity for LC connections or 12 fibre for SC connections;
- 1 large format splicing area per plate;
- 1 connector removal tool per optical fibre rack.
Anchoring- Light
- Pivot
- Right/Left Hinge
Product benefits
- Good safety during work, access to a fibre only requiring a single plate to be opened.
- Large format splicing area.
