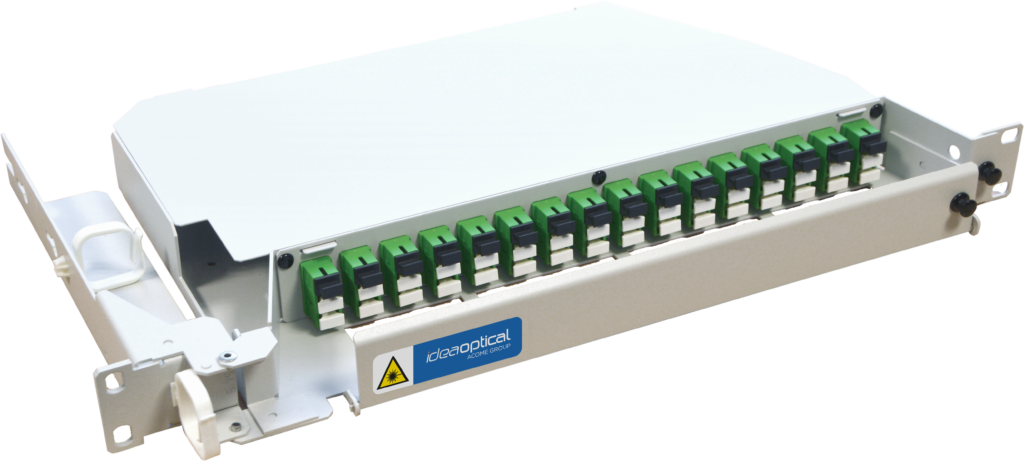

The iRCP-R-19 rack is a 19″ pivoting optical rack available in 1U and 1.5U. It is wired with 16 1 × 2 splitters for the 1U version and 16 splitters 1 × 4 for the 1.5U version.
The iRCP-R-19 has 16 splitter inputs directly on the front panel.
The iRCP-R-19 is composed of:
- 1 fixed metal section equipped with cable guides to guide the tubes on input;
- 16 1 × 2 (1U) or 16 1 × 4 (1.5U) splitters;
- 1 panel of 48 SC adapters (32 outputs and 16 inputs) for the 1U version and a panel of 80 SC adapters (64 outputs and 16 inputs) for the 1.5U version;
- 1 pivoting front shutter with identification tag;
- 1 protective cover.
- Direct front access
- Factory tested and assembled
- Serial number
- Configuration with pre-terminated splitter inputs and outputs on adapter panel.
