The iMOD-ROC modules make it possible to equip the iROC rack with all the necessary functions for connection, splicing, monitoring, splitting or multiplexing. They can be inserted from the front or the back of the frame, providing comfortable use during installation and maintenance.
4 formats available:
- 8 optical positions on 1/3 of U;
- 12 optical positions on 1/3 of U;
- 24 optical positions on 1/3 of U;
- 36 optical positions on 1U;

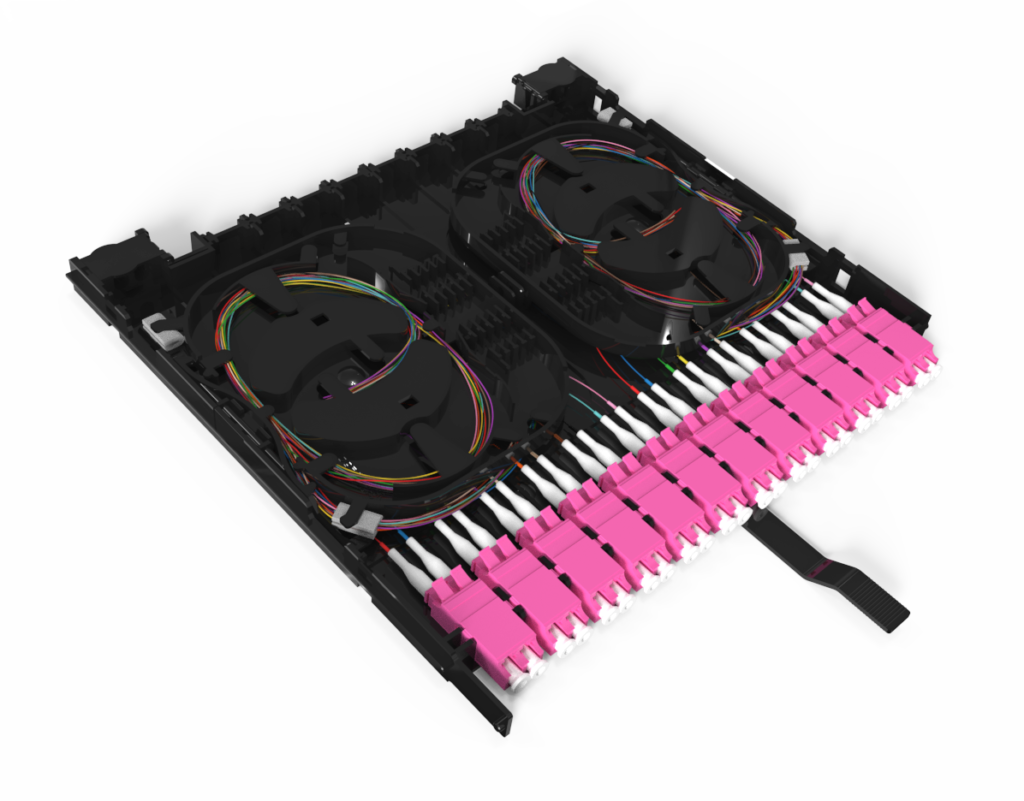

SPLICING AND CONNECTION MODULE
The iMOD-ROC-ER modules are available in 12 and 24 fibres, with one or two 12-fibre single or ribbon trays respectively. The multi-pins at the back of the module allow to fix Ø5 mm tubes or cables from the Idea Optical range.
CONNECTION MODULE FOR MPO/MTP® PRE-TERMINATED CABLE
The iMOD-ROC-MPO/MTP® modules are available with 8, 12 and 24 LC connectors and allow the connection of pre-terminated MPO/MTP® cables. The 24 connector module allows the connection of 1 base-24 cable, 2 base-12 cables or 3 base-8 cables.
CONNECTION MODULE FOR PRETERMINATED CABLE
The iMOD-ROC-R modules are available with 12 and 24 LC connectors and allow the connection of pre-terminated cables up to 24 OF. The 5 mm multi-pins on the back of the module are suitable for fixing 6, 12 and 24 OF Idea Optical cables.
CONNECTION MODULE FOR PRETERMINATED MPO/MTP®CABLE
The iMOD-ROC-MPO/MTP®-36 modules are available for 12, 24 or 36 OF and allow all three types of connection: weld, pre-terminated LC cable or MPO/ MTP®.
The iMOD-ROC-TAP modules are available for 8, 12 and 24 fibres and allow all configurations for network monitoring. They are supplied with a wiring diagram on the module.
- Multi-pin for cables
- Serial number
- 4 formats available
- Spliced connection, microbreakout cable or MPO/MTP® Base-8, 12 and 24;
- Front panel connection available in LC, SC, MPO/MTP®, SN or MDC;
- TAP monitoring modules.
