iCOVE

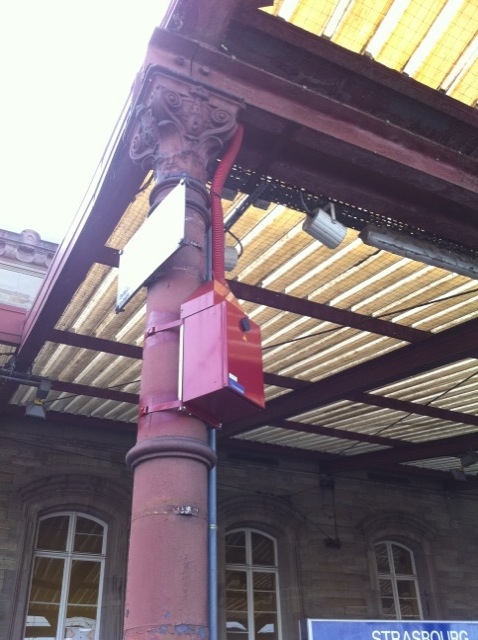

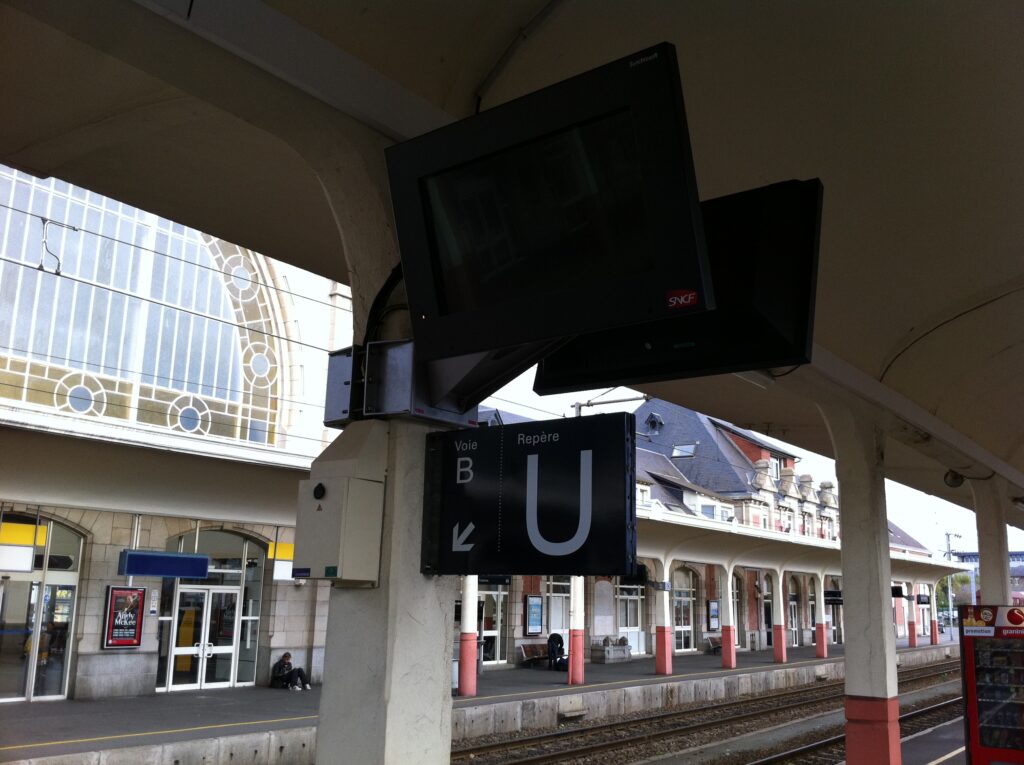

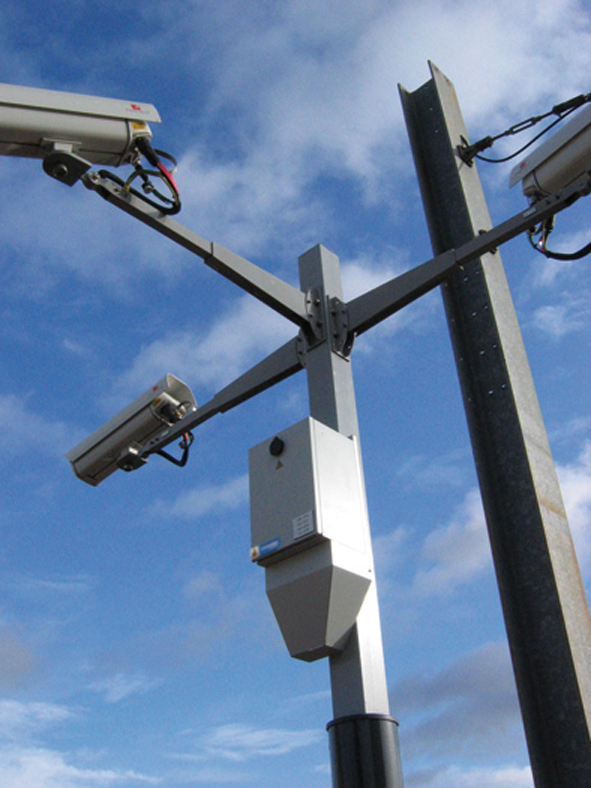

Outdoor wall optical and electrical box designed to provide an optical and electrical connection point for video protection cameras, remote display screens, wifi antennas, etc.
It provides a common maintenance point for the optical and electrical parts (energy and telecom).
Compact and equipped with specific management systems, iCOVE allows the separation of fibre optic and electric power supply cabling and guarantees an optimal level of security.

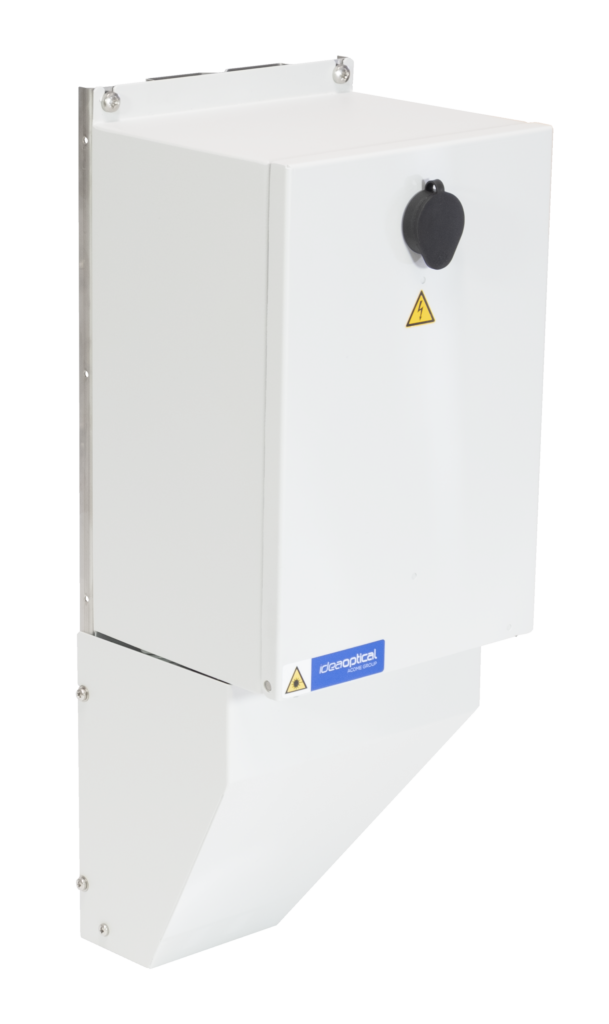

The iCOVE is an outdoor box consisting of:
- 1 painted stainless-steel housing;
- 1 reversible pivoting front access door with lock (cable iCOVE cable input from bottom input from below or above).
Fibre optic management:
- 1 attachment plate for anchoring cables;
- 1 splice tray for 12 OF.
Power management:
- 1 maintenance outlet and an earth terminal block;
- multi-cable cable glands;
- 1 stainless steel attachment plate enabling the box to be fixed to a wall or a post and its protective cover.
Assortment of RAL Colors Available- Independent Fiber Management
- IP65 Weatherproof
- Top/Bottom cable entry
- Wall/post mounting
