iCOL-24/48

The iCOL-24/48 is a secure outdoor wall-mounted box offering a connection point for operators wishing to connect to a metropolitan area network or backbone managed by a third party.

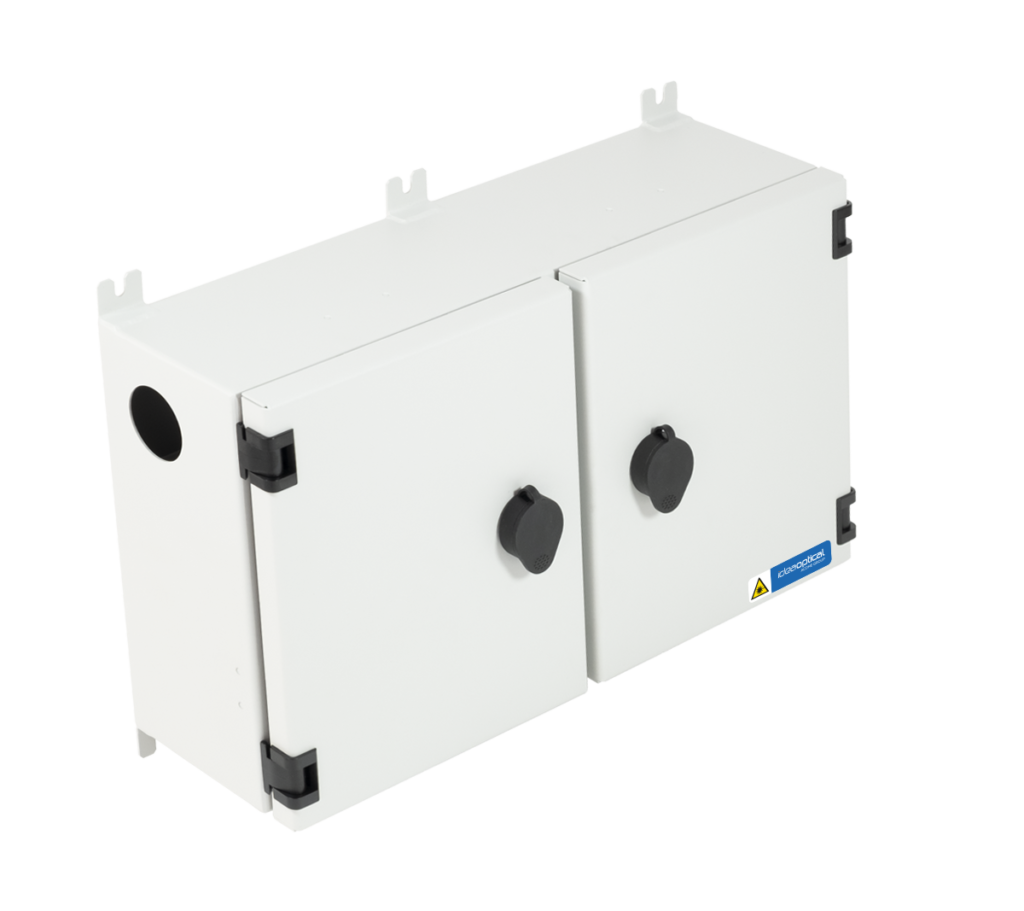

iCOL-24/48 s are outdoor boxes composed of:

1 painted stainless steel chassis equipped with 2 fans;
2 separate doors secured by locks;
1 attachment plate for pylons or posts (optional);

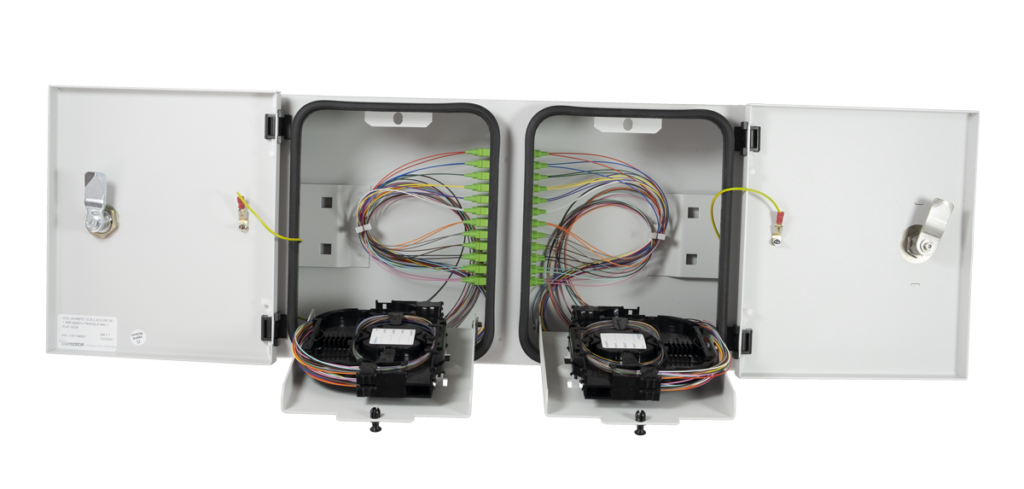

For the iCOL-24, two interior areas each containing:
- 1 ACS cable anchoring system,
- one cable gland,<:Li>
- 2 trays and 24 SC SX pigtails;

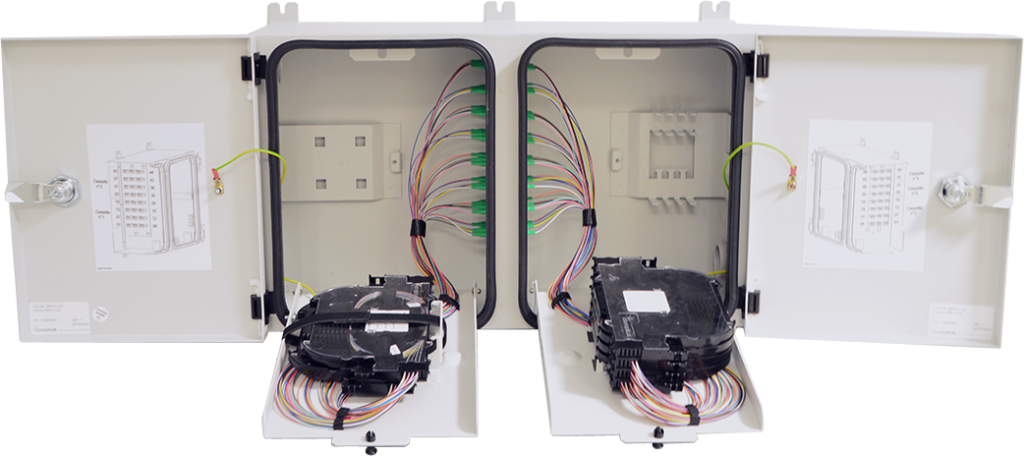

For the iCOL-48, two interior areas containing:
- On the left,
  - 2 ACS cable anchoring systems,
  - 2 cable glands,
  - 2 trays and 48 LC DX pigtails;
- On the right,
  - 1 anchoring multi-pin with 6 cables,
  - 1 cable gland with 6 inputs,
  - 4 trays and 48 LC DX pigtails;
